Brand Name : | Qingying or QY |
Model Number : | QFC55K-UPC |
Certification : | IEC or ISO9001 2015 |
Price : | negotiation |
Payment Terms : | L/C, T/T, Western Union,Paypal |
Supply Ability : | 20000 Piece per Week SC UPC Fast Fiber Optic Connector |
Delivery Time : | 7 working days |

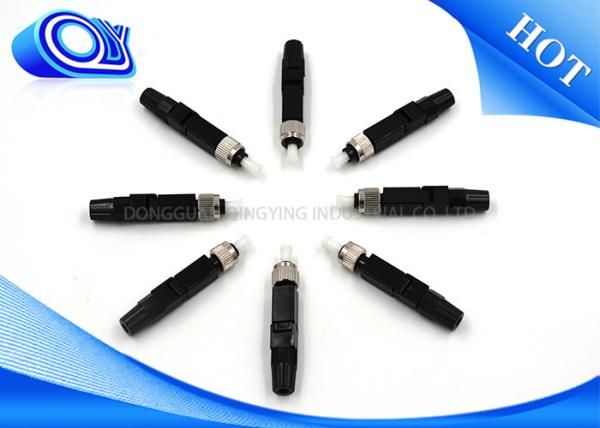

1.Description
Use for open FTTH Optical terminal to end;
Connection in closure, cabinet, terminal box;
Recovery and maintenance in the accident like fiber cut situation;
LAN, WAN, data and video transmission;
Construction and maintenance in the FTTX of terminal user;
2.Features
1.Factory-installed fiber stub
2.Low insertion loss
3.Quick and easy fiber termination in the field .
4.Eliminates cable excess length and pigtail splicestorage
5.Cost effective 6.Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable
3.Specification
Product Specification | |
Fiber mode | Single FC/UPC 125um |
Online torsion | 35N |
Insert loss | ≤0.3dB (1310nm & 1550nm) |
Return loss | ≥50dB |
Fastening strength of naked fiber | ≥ 5N |
Tight clamping force cladding | ≥ 8N |
Tensile strength | ≥ 30N |
Work temperature | -45°C~+80°C |
![]() |
